Operation, use and maintenance steps of 3D flexible welding platform

Three-dimensional flexible welding table has the advantages of economy, flexibility, precision and repeatability.

Application field: With the continuous development of industry, 3D flexible welding table has been widely used in equipment manufacturing and welding processing industry, changing the traditional industrial clamping positioning method, and promoting the generation of many new process methods. Through continuous efforts, we have won a high degree of recognition in the market. Nowadays, in the machinery industry, processing industry, rail transit industry, automobile industry, motorcycle industry, shipbuilding industry, pressure vessel industry, sheet metal processing industry, chassis cabinet industry, testing and testing industry, steel structure industry and so on, three-dimensional flexible welding tools are constantly used in welding production, and improve production efficiency.

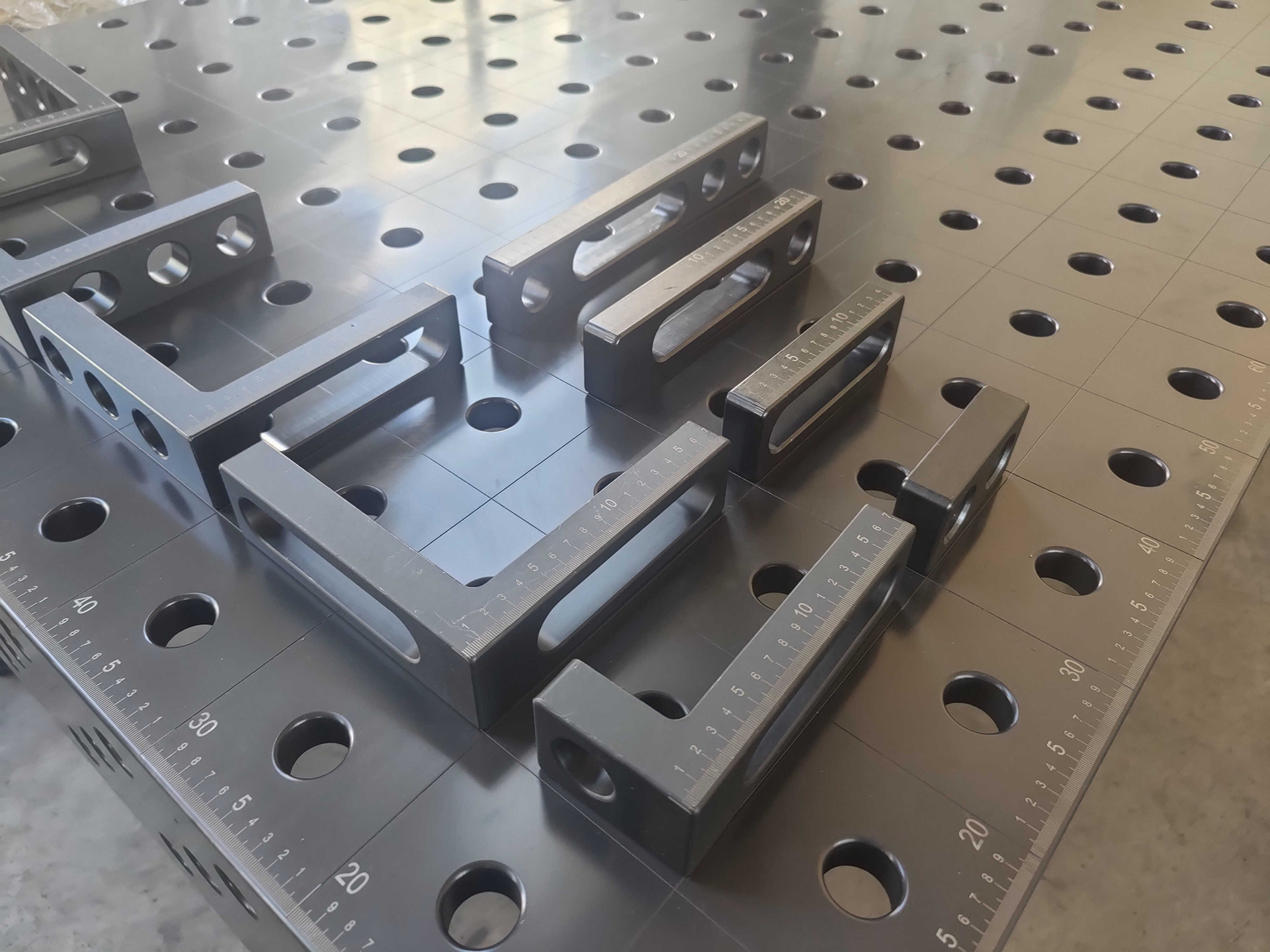

Three-dimensional flexible welding tooling is a set of pre-made standardized, systematic, universal module, all module connection, fixing and pressing are in the way of hole positioning and locking pin, module and module can be adjusted according to the size of the workpiece changes, the whole set of fixture combination can achieve the combination of three-dimensional space, this fixture features: Mainly used in welding products is ideal, so it is called three-dimensional flexible welding fixture.

Operation and maintenance steps of 3D flexible welding platform:

1. In order to prevent the deformation of the three-dimensional flexible welding platform, when hoisting the three-dimensional flexible welding platform, four steel cables of the same length should be used to hang the four lifting holes on the three-dimensional flexible welding platform at the same time, and the three-dimensional flexible welding platform should be smoothly hoisted on the transport vehicle.

2, the three-dimensional flexible welding platform support point pad, pad flat, each support point uniform force, the whole three-dimensional flexible welding platform stable.

3. During the installation of the 3D flexible welding platform, the various support points of the 3D flexible welding platform are padded and padded with adjusting pads, and the technicians adjust the 3D flexible welding platform to qualified accuracy.

4, the use of three-dimensional flexible welding platform to gently handle the workpiece, do not move the rough workpiece on the three-dimensional flexible welding platform, so as to avoid the three-dimensional flexible welding platform working surface caused by bumps, scratches and other damage.

5. In order to prevent the overall deformation of the three-dimensional flexible welding platform, after use, the workpiece should be taken down from the three-dimensional flexible welding platform to avoid the deformation of the three-dimensional flexible welding platform caused by the long-term pressure of the workpiece on the three-dimensional flexible welding platform.

6. When the 3D flexible welding platform is not in use, the working surface should be cleaned in time, and then coated with a layer of anti-rust oil, and covered with anti-rust paper, and the 3D flexible welding platform should be covered with the outer packaging of the 3D flexible welding platform to prevent damage to the working surface of the 3D flexible welding platform caused by carelessness.

7, three-dimensional flexible welding platform should be installed in a ventilated, dry environment, and away from heat sources, corrosive gases, corrosive liquids.

8, three-dimensional flexible welding platform according to the standard of regular weekly inspection, the verification cycle can be 6-12 months according to the specific situation.

In the usual use of the three-dimensional flexible welding platform, if it encounters wet weather, especially in the south, it is necessary to protect the three-dimensional flexible welding platform with a cover, otherwise when the impurities or acid gas in the air falls on the three-dimensional flexible welding platform, it will accelerate the aging of the platform. In the ordinary process of engineering use, if the quality of the three-dimensional flexible welding platform itself is not up to standard, it is particularly easy to rust after encountering a series of air and water.

It is also an indispensable basic tool in machinery manufacturing. Test with colored hair. The Level 0, Level 1 platform shall have no less than 25 points within a range of 25 mm square on each side, level 2 no less than 20 points, and level 3 no less than 12 points. 3D flexible welding platform is a planar reference instrument used for workpiece inspection or marking. The installation of the platform should be adjusted to the level, the load is evenly distributed on the fulcrum, the ambient temperature is (20±5℃), and the vibration should be avoided during use. There should be no casting defects such as sand holes, pores, cracks, slag inclusion and shrinkage on the working surface of 3D flexible welding platform.
